Radial Arm Maze

Species

mouse

rat

Durable, easy to clean ABS plastic or acrylic. Available in black, white, beige or clear walls with colored or clear floors. Interchangeable plain and pellet feeder floors. Includes manual doors at each arm. Compatible with BehaviorCloud video tracking software for analyzing distance traveled, latency, velocity, resting time, and time spent in user-defined zones.

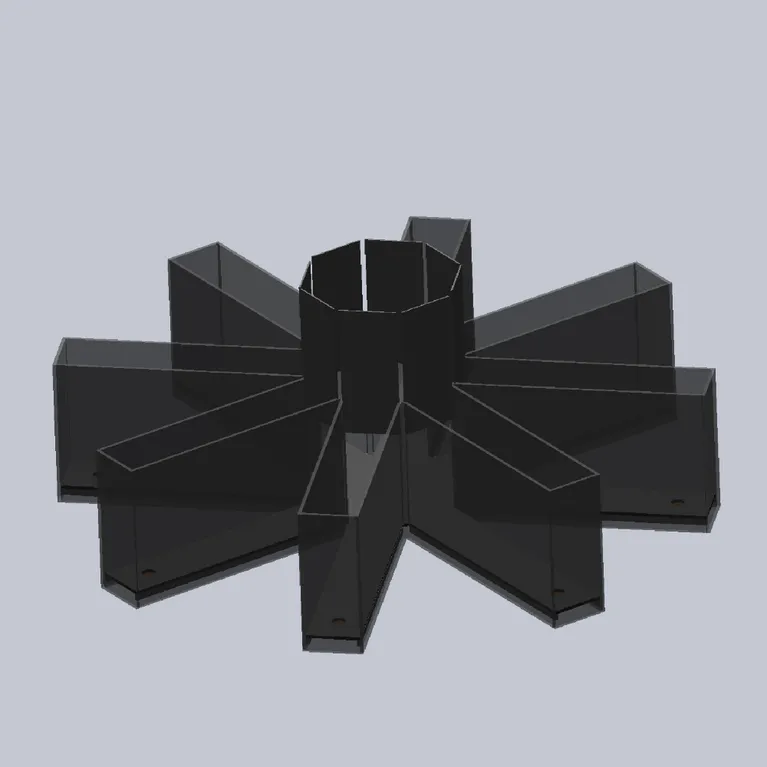

Radial Arm Maze by San Diego Instruments (SDI): Tailored for Spatial Learning and Memory Tasks

Harnessing its strategic design, the Radial Arm Maze empowers animals to choose from eight distinct arms. After opting for one, they return to the central hub, readying themselves for the next choice. For tasks that involve water, SDI introduces a watertight version. With an array of colors to match different research needs and manual entry doors to regulate arm accessibility, SDI’s Radial Arm Maze is emblematic of ease-of-use, maintenance simplicity, portability, and unmatched versatility.

Key Features:

Models: Designed for both rats and mice.
Software Compatibility: Seamlessly integrates with our BehaviorCloud.
Design Variants: Choose from solid colors (black, white, or beige) or a clear wall model (optimized for tasks with external cues).
Flooring Flexibility: Swap between plain and pellet holed floors for the dry maze variant.
Regulated Accessibility: Comes with manual entry doors for arm access, compatible with both dry and watertight mazes.
Material Choices: Crafted from durable and easily cleanable ABS plastic or acrylic.

Technical Specifications

Radial Arm Maze Dimensions

Parameter	MOUSE	RAT
A	26.45″	47.86″
B	9″	18.5″
C	8.45″	10.86″
D	3″	4″
E	6″	10″
F	.75″ DIA. x .5″ DEEP	1″ DIA x .75″ DEEP

Watertight Radial Arm Maze Dimensions

Parameter	MOUSE	RAT
A	27″	53″
B	9″	15.5″
C	8.8″	22″
D	3.5″	5.5″
E	8.25″	24″
